0544550150BPW Leaf Spring Hanger1
Technical Information:
Steel
Material: Steel
Name: Channel cross member, rigid, torsion protection with s
quare internal lock-bush, welded on wearing plate
Use: for spring bolt M 30
Additional text: incl. item 1310, 1520, 1535

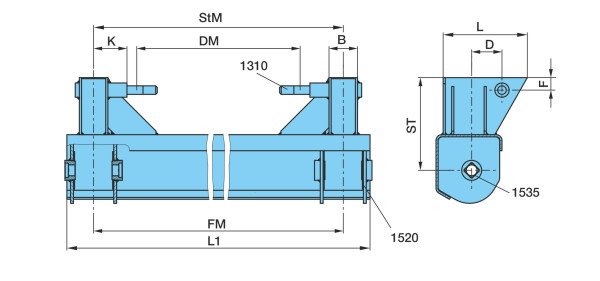

Dimension: Ø 30 / ST 260 / FM 1300 / B 80 / D 85 / F 35 / DM
1058 / K 94 / L 236 / L1 1450
Steel
Material: Steel
Name: Channel cross member, rigid, torsion protection with s
quare internal lock-bush, welded on wearing plate
Use: for spring bolt M 30
Additional text: incl. item 1310, 1520, 1535
Dimension: Ø 30 / ST 260 / FM 1300 / B 80 / D 85 / F 35 / DM
1058 / K 94 / L 236 / L1 1450
