0537568500BPW Leaf Spring Hanger1
Technical Information:
Steel
Material: Steel
Name: Hanger bracket, right, adjustable (sloted bush), loose
wearing plate
Use: for spring bolt M 30
Additional text: incl. item 1310, 1540 replaced by 05.375.68
.77.0 + 03.340.14.12.0 (item 1315)
Remark: with head plate

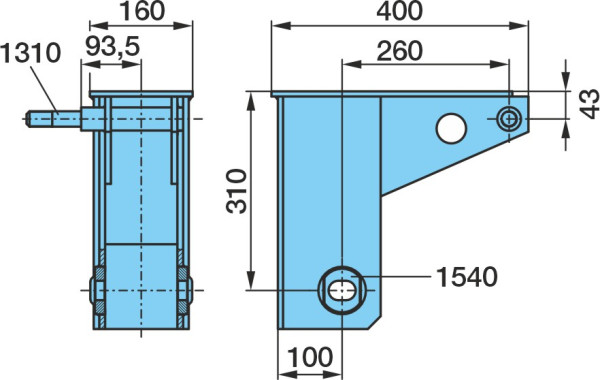

Dimension: Ø 30 / 310 / 160 / 260 / 43 / 93,5 / 400
Steel
Material: Steel
Name: Hanger bracket, right, adjustable (sloted bush), loose
wearing plate
Use: for spring bolt M 30
Additional text: incl. item 1310, 1540 replaced by 05.375.68
.77.0 + 03.340.14.12.0 (item 1315)
Remark: with head plate
Dimension: Ø 30 / 310 / 160 / 260 / 43 / 93,5 / 400
